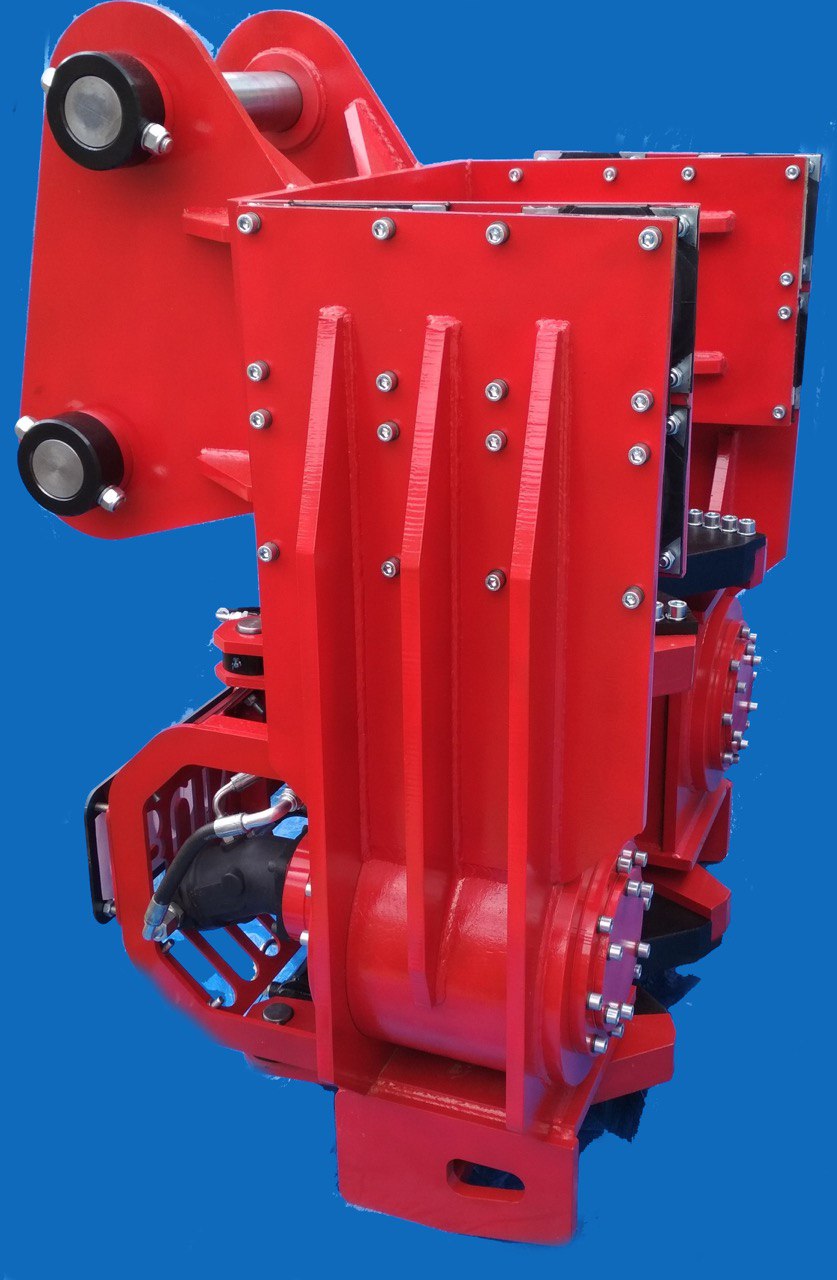

Hydraulic Pile Driver FR 202

The side grip vibratory pile driver Finaros 202 is designed for driving and retrieving pipe sais and wooden piles up to 70 mm to 325 mm in diameter.

This vibratory pile driver with side grip can be used for an excavator with a total weight of 15-25 tons.

The grabbing of the pipe pile by this side grip vibratory pile driver occurs along the entire diameter of the pipe. This allows the pipe pile to be securely anchored to the vibratory pile driver and keep the tubular pile shape intact.



ADVANTAGES:

  • The side grip vibratory pile driver Finaros 202 differs in its design from pile drivers of other manufacturers. Its unique design provides 40% lighter pile driver weight which allows using a smaller excavator for work.

The side grip vibratory pile driver Finaros 202 differs in simplicity of design, reliability and uniquely low price in comparison with vibratory pile drivers of other manufacturers.



previous arrow
previous arrow
next arrow
next arrow
Full screenExit full screen
Slider

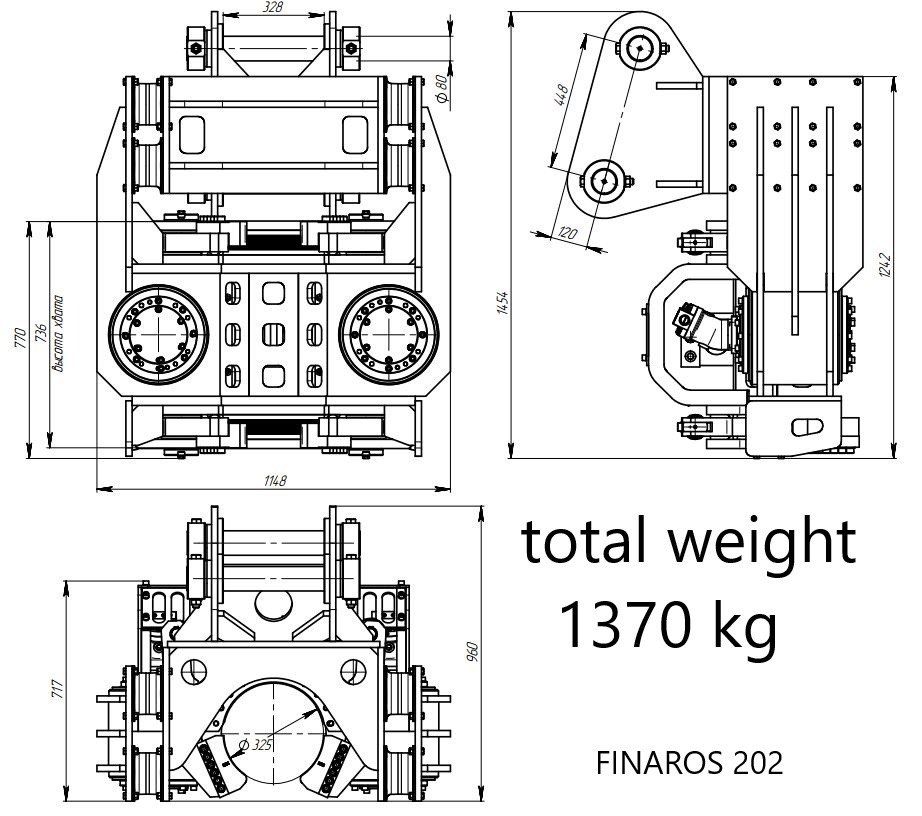

Vibro Hammer Technical Data and Montage

Data Name Value
Dynamic Weight (including clamping device), kg 1045
Rates Eccentric Speed, RPM 2100
Rated Frequency, Hz 35
Eccentric Moment, kN.m 40.2
Centrifugal Force, kN (t) 202 (20.6)
Amplitude Maximum, mm 4.0
Rated Fluid Flow, LPM 120
Fluid Work Pressure, bar 250
Hydraulic Fluid, recommended types mineral oils HL, HLP, HVLP ISO 32
Hydraulic Fluid Temperature Range, °C -20...+60
Clamp Force, kN (ton) 25 (24,6)
Puling Force Maximum (to pulling element), kN (t) 60 (6)
Piling Element Weight Maximum, kg 700
Immersion Depth for Tubes and Piles, m up to 12
Maximum Tube Diametr, mm 325
Transport Overall Dimensions (protection incl.) LWH, cm 1478x1148x940
Total Weight of Pile Driver (protection shell incl.), kg 1398

Find out other models of hydraulic pile hammers

If you have questions on our Pile Driving FR 202, feel free to contact us.
